Description
Product Characteristics
Description
Product Characteristics
| Product Characteristics: | |

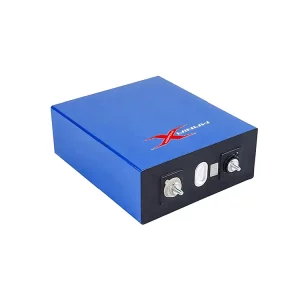

| Keywords: | 24V 100Ah LiFePO4 battery pack |
| Anode (+) Materials: | LiFePO4 |
| Nominal voltage: | 25.6V |
| Nominal Capacity: | 100Ah |
| Energy: | 2560Wh |
| Cycle life: | >3000 cycles @0.5C 100%DOD |
| Months Self-discharge: | <3% |
| Efficiency of Charge: | 100% @0.5C |
| Efficiency of Discharge : | 96~99% @0.5C |
| Brand Name: | ManiaX or OEM/ODM |
| Certificates: | CE, ROHS, FCC, MSDS, UN38.3 |
| Standard Charge: | |
| BMS Functions: | Over-charge, over-discharge, over-current, short-circuit and temperature protection. |
| Charge Voltage: | 29.2±0.2V |
| Charge Mode: | 0.2C to 29.2V, then 29.2V, charge current to 0.02C (CC/CV) |
| Charge Current: | 20A (can be customized) |
| Max. Charge Current: | 100A |
| Charge Cut-off Voltage: | 29.2V±0.2V |
| Standard Discharge: | |
| Max Continuous Discharge Current: | 100A (can be customized) |
| Peak Discharge Current: | 300A (1-3s) |
| Discharge Cut-off Voltage: | 20V±0.5V |
| Environmental: | |
| Charge Temperature: | 0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity |
| Discharge Temperature: | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
| Storage Temperature: | -20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity |
| IP Grade: | IP65 |
| Mechanical description: | |
| Plastic Case: | ABS |
| Approx. Dimensions: | L522*W240*H218mm |
| Terminal Spec: | M8 Terminal |
| Approx. Weight: | 23.5kgs |
| Application: | Used for Golf Carts, SUBMARINES, E-Bicycles, E-Forklifts, E-vehicles, E-Wheelchairs, Solar Energy Storage Systems, Uninterruptible Power Supplies, Home Appliances…etc. |
